Hikvision

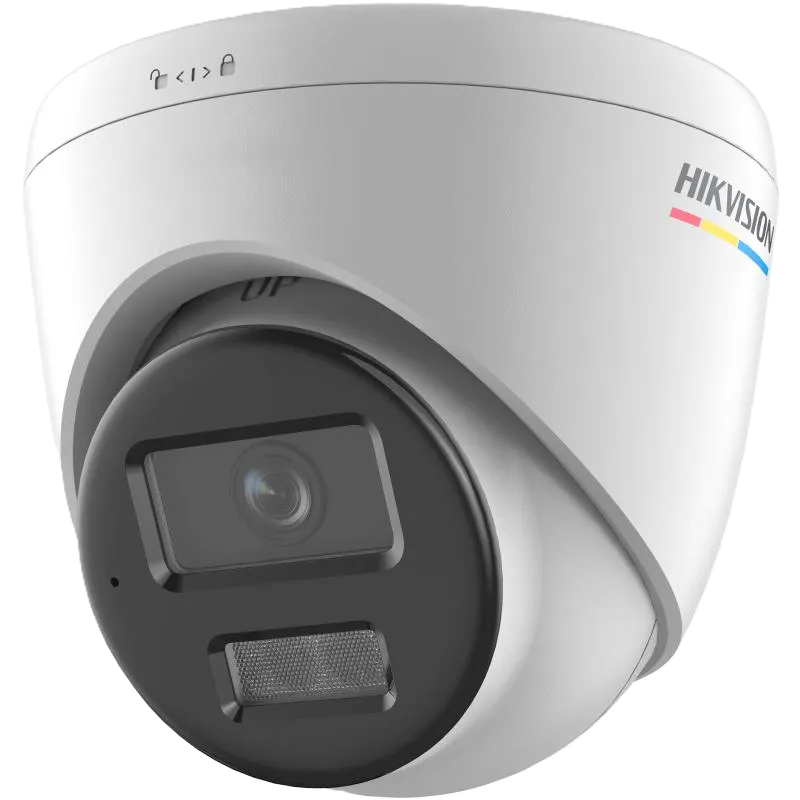

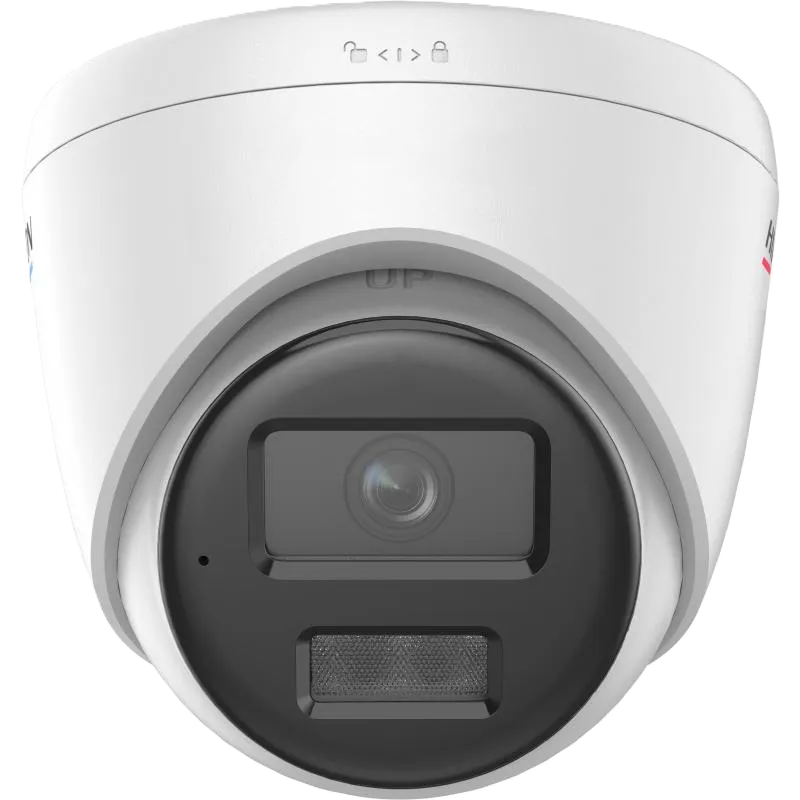

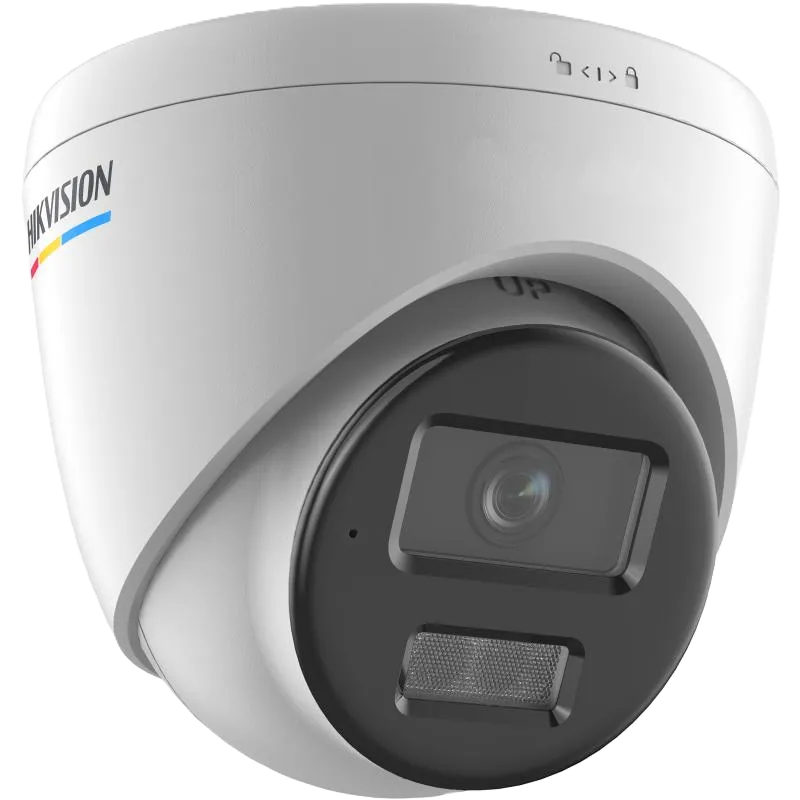

2 MP ColorVu 3.0 Fixed Turret Network Camera
Model:
DS-2CD1327G3-LIU(F)(/SL)(/SRB)
Key Features
- HikAI-ISP for excellent noise reduction effect
- Super clear 24/7 colorful imaging with ColorVu 3.0 technology
- Motion Detection 3.0, more accurate on person and vehicle classification
- -SL/-SRB: Strobe Light & Audio Alarm to deter intruders
- -SL/-SRB: Two-Way Audio via camera and Hik-Connect
- Smart Hybrid Light: integrates IR and white lights, 3 supplemental lighting modes
- -F: Support on-board storage up to 512 GB (SD card slot) (Optional)
- Water and dust resistant (IP67)
Genuine Products
Full Warranty
Professional Installation
24/7 Support
Technical Specifications
Detailed technical information for DS-2CD1327G3-LIU(F)(/SL)(/SRB)
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm: H 101.5°, V 54.6°, D 122.1°; 4 mm: H 84.1°, V 45.6°, D 99.1° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 2.8 mm: 1.7 m to ∞; 4 mm: 1.6 m to ∞ |
| DORI | 2.8 mm: D 63 m, O 25 m, R 12 m, I 6 m; 4 mm: D 77 m, O 30 m, R 15 m, I 7 m |
| Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 24 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3 |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32–160 Kbps (MP2L2)/16–64 Kbps (AAC-LC)/8–160 Kbps (MP3) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G), ISAPI, SDK |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, user |
| Security | Password protection, complicated password, watermark, HTTP authentication, WSSE, audit log, MAC address authentication |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Chrome 57+, Firefox 52+, Edge 89+, Safari 11 (plugin-free); Local service: Chrome 57+, Firefox 52+, Edge 89+ |
| Image | |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable rectangular privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10/100M self-adaptive |
| On-Board Storage | -LIU, LIU/S(L)(RB): NA; -LIUF, LIUF/S(L)(RB): microSD/microSDHC/microSDXC up to 512 GB |
| Built-in Microphone | Yes, 1 built-in microphone |
| Built-in Speaker | -LIU/-LIUF: NA; -LIU/S(L)(RB), -LIUF/S(L)(RB): Max. 2 W, SPL 101 dB @ 10 cm |
| Audio | NA |
| Alarm | NA |
| Reset Key | -LIU, LIU/S(L)(RB): NA; -LIUF, LIUF/S(L)(RB): Yes |
| Event | |
| Basic Event | Motion detection (human/vehicle classification), video tampering, exception |
| Linkage | Upload to FTP, notify surveillance center, send email, trigger recording, trigger capture |
| General | |
| Power | -LIU/-LIUF: 12 VDC ±25%, 0.52 A, max. 6.2 W; PoE IEEE 802.3af Class 3, max. 7.5 W; -LIU/S(L)(RB), -LIUF/S(L)(RB): 12 VDC ±25%, 0.54 A, max. 6.5 W; PoE IEEE 802.3af Class 3, max. 7.8 W |
| Material | Cover: Plastic; main body: Metal |
| Dimension | Ø110 mm × 102.7 mm (Ø4.3" × 4.0") |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| Weight | LIU: 365 g; LIUF: 380 g; LIU/SL or SRB: 400 g; LIUF/SL or SRB: 405 g |
| With Package Weight | LIU: 550 g; LIUF: 575 g; LIU/S(L)(RB): 590 g; LIUF/S(L)(RB): 600 g |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity ≤95% non-condensing |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity ≤95% non-condensing |
| Language | English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German |
| General Function | Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding |
| Flashing Light | -LIU/-LIUF: NA; -LIU(F)/SL: White Light; -LIU(F)/SRB: Red and Blue Light |
| Approval | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 |
| Safety | CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017 |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013) |
| Available Models | DS-2CD1347G3-LIU (2.8 mm, 4 mm); DS-2CD1347G3-LIUF (2.8 mm, 4 mm); DS-2CD1347G3-LIU/SL (2.8 mm, 4 mm); DS-2CD1347G3-LIU/SRB (2.8 mm, 4 mm); DS-2CD1347G3-LIUF/SL (2.8 mm, 4 mm); DS-2CD1347G3-LIUF/SRB (2.8 mm, 4 mm) |
| Accessories | |
| Optional Mounts | DS-1276ZJ-SUS Corner Mount; DS-1281ZJ-S Inclined Ceiling Mount; DS-1271ZJ-110-TRS Pendant Mount; DS-1275ZJ-SUS Vertical Pole Mount; DS-1280ZJ-TR13 Junction Box; DS-1272ZJ-110-TRS Wall Mount |
| Installation Methods | Corner Mounting: DS-1276ZJ-SUS+DS-1281ZJ-S; Inclined Ceiling Mounting: DS-1281ZJ-S; Pendant Mounting: DS-1271ZJ-110-TRS; Vertical Pole Mounting: DS-1275ZJ-SUS+DS-1281ZJ-S; Junction Box: DS-1280ZJ-TR13; Wall Mounting: DS-1272ZJ-110-TRS+DS-1253ZJ-M |
